Corrugated, Aluminium Roofing Sheets Supplier Dubai, UAE

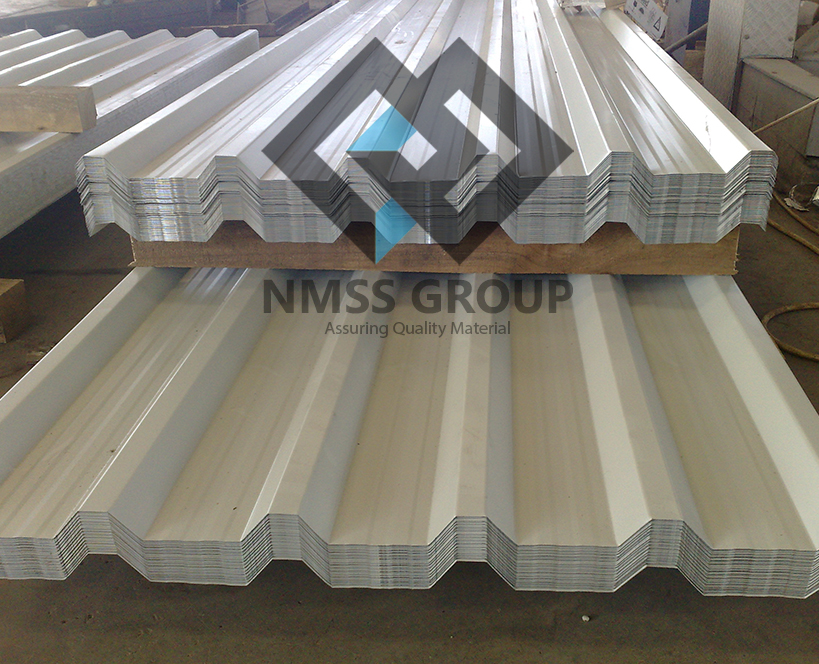

35/200 Corrugated Roof & Wall Cladding Sheet (Cover Width 1000mm)

This low-profile panel has a generous edge for a double-lap weather proof seal for roofing. The low, wide trapezoidal ribs resist crushing and encourage smooth water flow.
The 1OOO mm version is ideal for sliding or an inexpensive, single lap roof panel. The closely spaced rib pattern casts an attractive, even shadow line.

Raw Materials.
A) Galvanized or Alu-zinc coated steel. Either in Mill finish or in polyester coated.
Base Metal conforming To ASTM A653, Commerical Grade or Equivalent

B) Aluminium plain or Stucco Embossed either in Mill finish or in Polyester coated.
Alloy - 3105, Temper H-16 or Equivalent

Standard Colors:
RAL 9002 OFFWHITE
RAL 1001 BEIGE
RAL 5012 BLUE
BSl2B21 EMIRATES GREEN

Available in Non-standard colors on request.

NMSS high quality corrugated sheets are supplied to every places in UAE such as Abu Dhabi, Al Ain, Dubai, Sharjah, Ajman, Umm Al Quwain, Fujairah and Ras Al Khaimah at very low price. And we export to GCC Countries like Oman, Saudi Arabia, Iraq, Jordan, Kuwait, Bahrain and also to African countries like Algeria, Comoros, Namibia, Sudan, Tunisia, Cameron, Nigeria, Uganda, Eritrea, Libya, Somalia, Ethiopia, Tanzania, Djibouti, Kenya, Mozambique, South Sudan etc.

The profiled sheets offer architects and designers a range of choices for roof and wall cladding such as internal linings, external cladding and for industrial and commercial buildings.

Designed to conciliate high static characteristic with reduced weight, these sheets guarantee the optimization of the structure’s realization costs while providing safe working platforms.

Advantages:

Cost effective
Allows rapid and rational execution
Minimum labour required for execution
Easy to dismantle for building transformations
Made to site measurement thus eliminating wastage and installation complications
Modifications or extensions can be done at any time.
Applications:

Roof Panels
Wall Panels
Specifications:

Aluminium profiled sheet is – Thickness 0.5 mm up to 0.9 mm, Alloy A3105, H16 Temper from tension leveled coils (different Alloy can be supplied on request)
GI & Alu Zinc coated steel profile sheets 0.5 mm to 0.9 mm thickness as per ASTM A 656 for GI & ASTM A 792 for Alu Zinc (different grades can be supplied on request)
Painting is baked regular modified enamel polyester, with 5 mic Primer and 20 mic coat on the weathering side and 5/7 micron primer on the reverse (PVDF, Silicon, Modified Polyester, Platisol & ARS coatings are applicable).

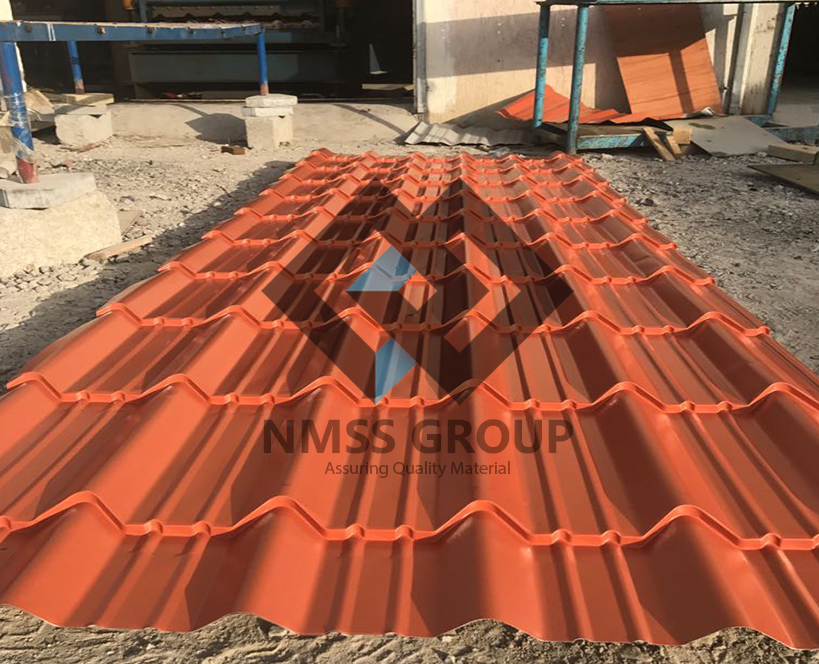

NMSS offers traditional and popular Mangalore Tiled shape profile. Elegant looking clay tiled profile sheets are available in variety of colors, adds beauty to your roof. Tile Roof Sheet offered come in precision designed and construction finish so as to perfectly match up with the different roofing requirements. Further, the superior construction values of these sheets also make them provide for excellent resistance from corrosion as well as deliver optimum sound insulation and fire retardant support as demanded by the customer’s insulated panel.

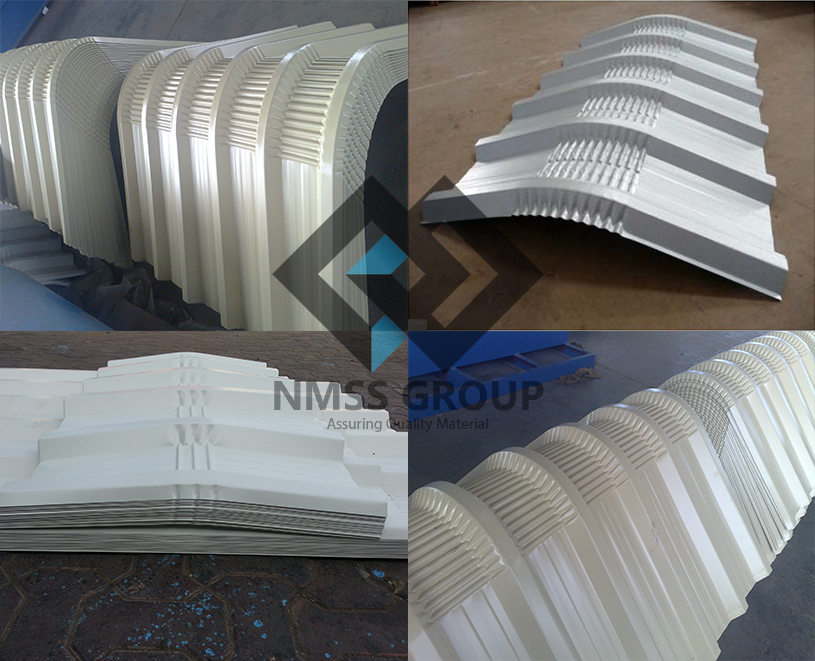

Easy to install, crimped curved sheets provide versatility and creativity that bring new and refreshing design to industrial and domestic buildings. The combination curves and contours in concave and convex shapes with flats and angles can be used to add an aesthetic appeal to the building. These sheets provide absolute design freedom with significant cost saving in construction. This is possible because:
Crimped sheets require less supporting framework for parapets and roofs.
Reduction or elimination of many flashing/cappings.
Less cladding material required for covering a given curve.

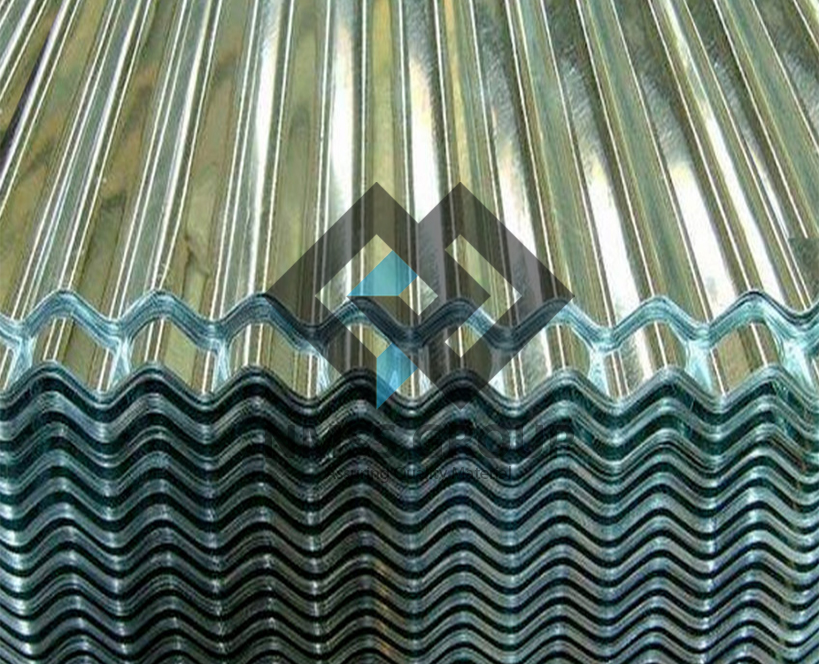

Our 18/76 corrugated sheeting excels through its perfect symmetry and superb form. Corrugated sheeting is primarily used as wall cladding and, as such, can add a stylish accent to buildings. Our 18/76 corrugated sheeting can be made from aluminium and steel and is available in a variety of colours and thicknesses. As manufacturer, we can produce the corrugated sheets in lengths of up to a maximum of 15 metres.
