Corrugated Roof And Wall Cladding Sheet
Sandwich Panels are used as Roof panels for Shopping Mall, School, Labour Camps and any type of buildings. They are also used for prefab houses and portable cabin and also used for cold rooms like freezer and chiller. Sandwich panels are light weight and cost effective and easy to transport and installation.
Sandwich panels are made when three separate elements are sandwiched together to form one structure
i.e. Top Skin + lnsulation core + liner
Top Skin: Aluminium or GI Polyster coated
Insulation: Polyurethane Foam with minimum density of 35 to 40 kgs/m3
Liner: Aluminium Foil or Aluminium / GI polyster coated shallow ribbed sheet
Sandwich panel main function is to protect the buildings from extreme cold and hot ambient temperature thus helping sheltering from environmental extreme conditions due to its very good insulation properties.
sandwich panel are produced in any customized lenght upto 12 meter
Profiled Sandwich panel: Thickness can be 35mm, 50mm,75mm and 100mm thick for corrugated roof and wall
Cold room panels: Thickness can be 50 mm, 100mm and 150mm

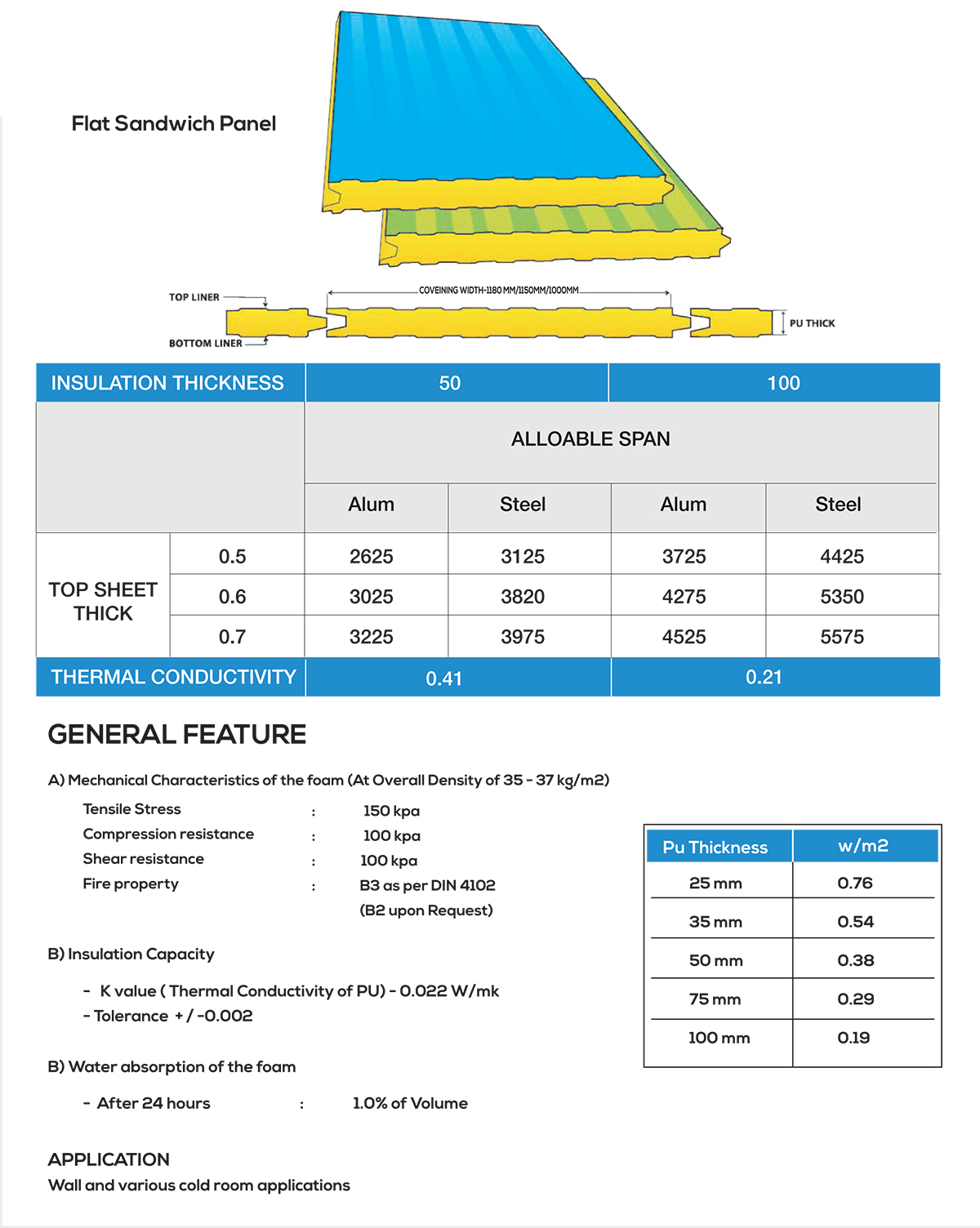

Flat Sandwich Panel

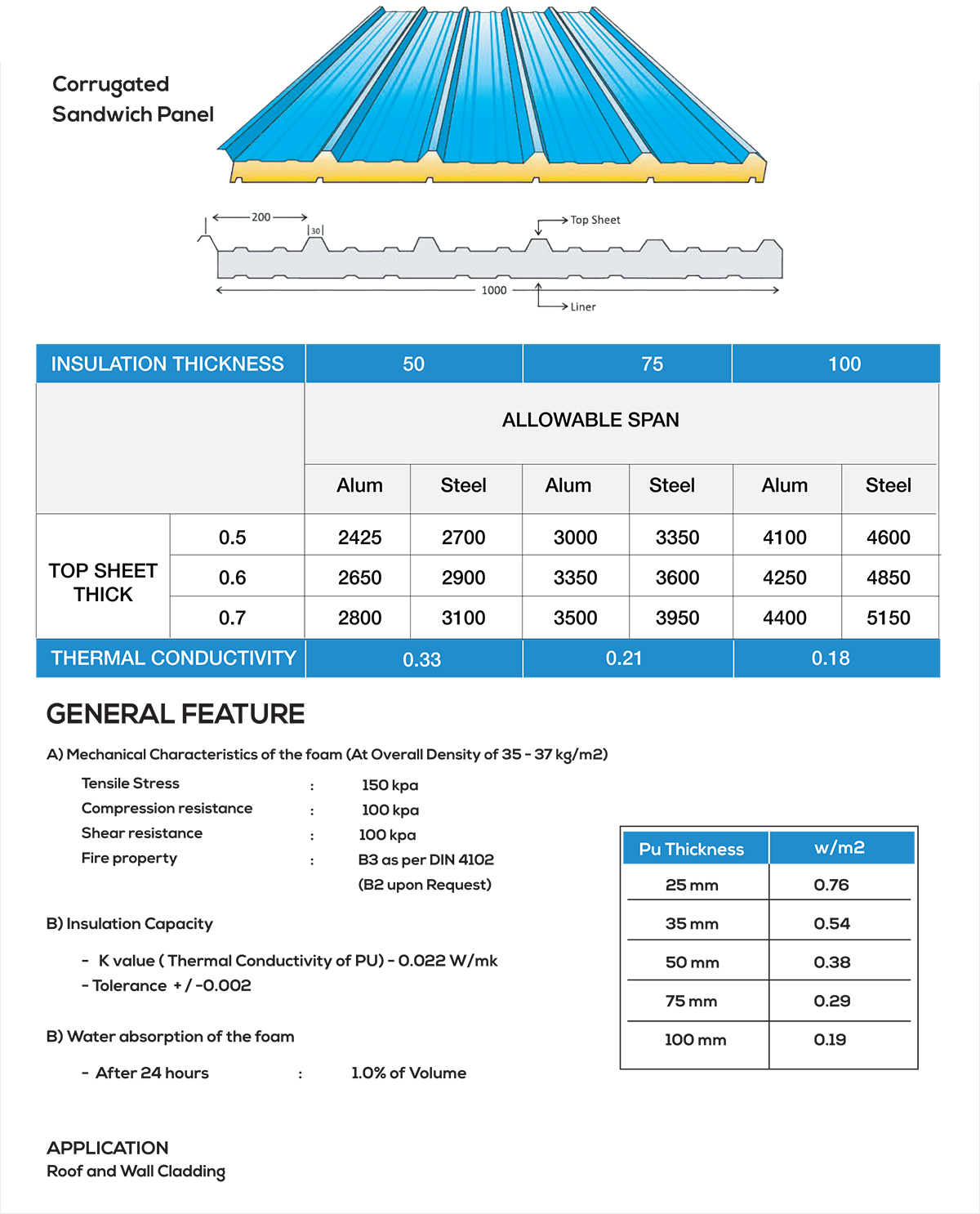

Corrugated Sandwich Panel
